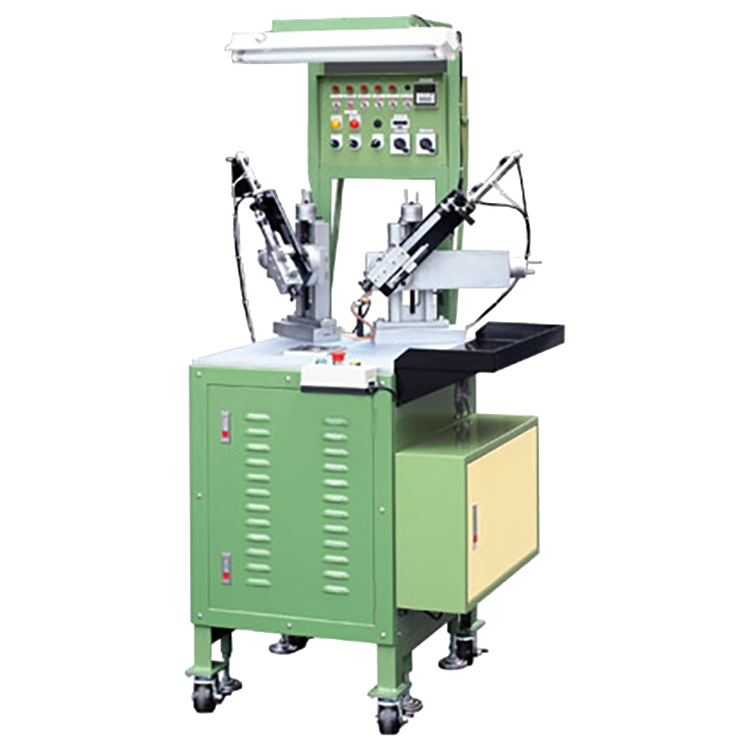

Application

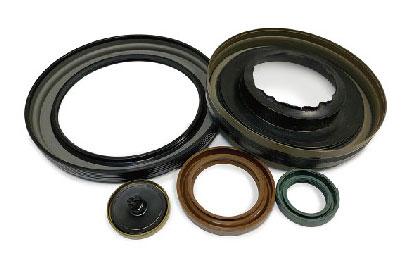

Suitable for inner and outer diameter of oil seals trimming.
Features
Uses #25 collet chuck easy and quick to change mold and knife.
It is easy and cheap to make the mold. Every Ø 1mm different working pieces have to change one
SPECIFICATION |
|
Power |
2KW |
Voltage |
According to the customer’s assignment |
Knife Set |
Two knife sets or three knife sets |
Trimming Range |
Oil Seals Outer DiameterØ 10-210mm |
Working Capacity |
15-25 PCS/min (Adjust based on the product trimming conditions) |
Control System |
PLC and air pressure system |
Machine Size |
(L)780×(W)680×(H)1850mm |
Measurement Ton |
(L)880×(W)780×(H)1950mm |
Machine Weight |
Net Weight:240kg Gross Weight:350kg |
