Application

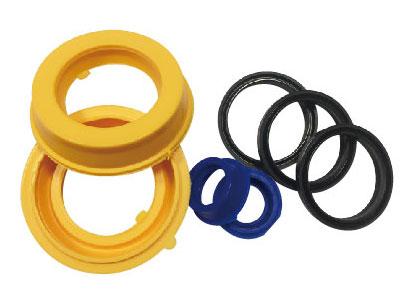

Suitable for the trimming of oil seals, specifically for medium-sized outer diameter oil seals.
Features

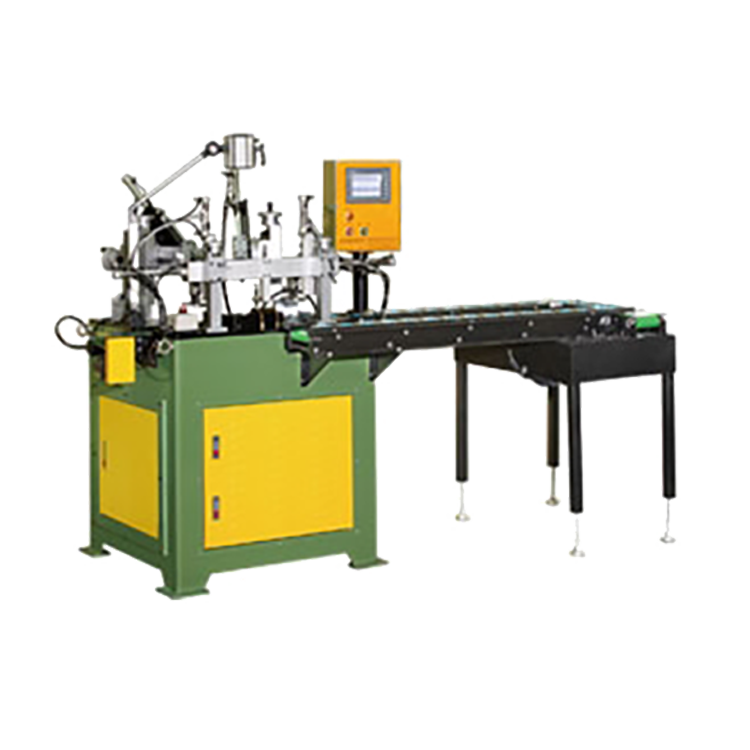

Special design the conveyor belt to auto feed oil seals and mechanical arm to trim large outer diameter oil seals.
Manual put oil seals on conveyor belt →auto loading → auto trimming → auto offloading. Cost down the labor charge.
Need to adjust the guide and location of conveyor and change the jig to match the size of working pieces
| SPECIFICATION |
|
| Power |
3KW |
| Voltage |
According to the customer’s assignment |
| Control System | PLC, Air Pressure System and Man-Machine Interface Touch |
| Knife Set |
Two Knife Sets , knife process adjustable |
| Trimming Range |
Oil Seal Max. Outer Diameter 120mm |
| Working Capacity |
8-12 PCS/min (Adjust based on the product trimming conditions) |
| Machine Size |
（L）2200×（W）800×（H）1800mm |
| Measurement Ton |
（L）2300×（W）900×（H）1900mm |
| Machine Weight |
Net Weight：500kg Gross Weight：600kg |
