Application

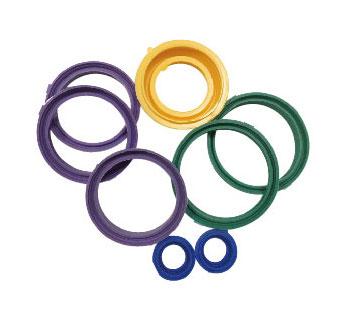

Suitable for the trimming of mass production oil seals, cups, packings and other soft rubber parts.
Features

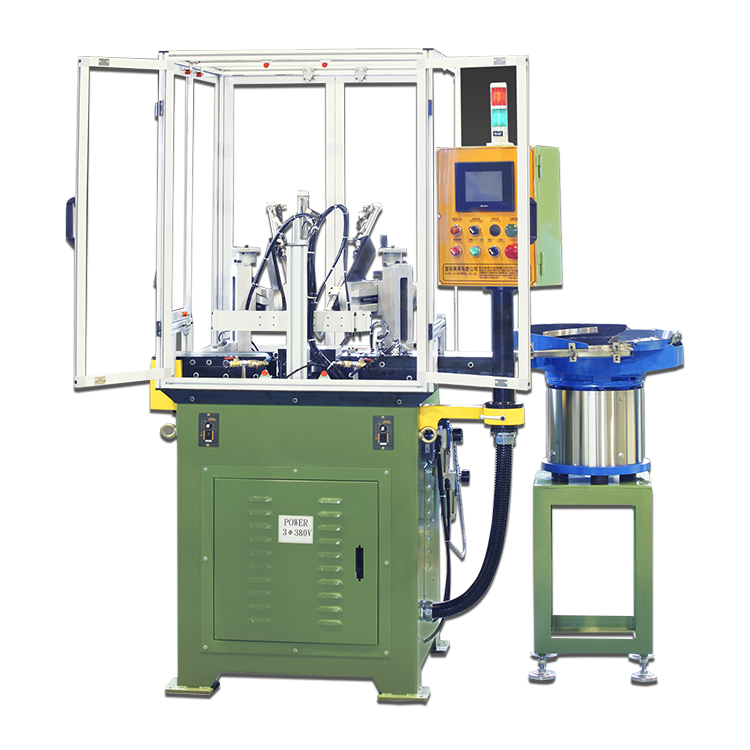

Use auto vibratory conveyor feeder and mechanical arm to trim precisely and rapidly.
Full auto trimming line, one operator can operate many set of machine simultaneously.
Need to adjust the guide of vibratory conveyor, working pieces location and change the jig to match the size of working pieces.
| SPECIFICATION |
|
| Power |
3KW |
| Voltage |
According to the customer’s assignment |
| Control System | PLC, Air Pressure System and Man-Machine Interface Touch Control System |
| Knife Set |
Two Knife Sets |
| Trimming Range |
Oil Seal Outer Diameter Ø20~40mm or Ø40~60mm Customized according to the customer's requirements, with a standard increment of 20mm (e.g., 25-45mm) |
| Working Capacity |
8-14 PCS/min (Adjust based on the product trimming conditions) |
| Optional Accessory (additional cost) | Safety Fence, Safety Switch or Safety Optical Curtain |
| Machine Size |
（L）1100×（W）800×（H）1850mm |
| Measurement Ton |
（L）1200×（W）1000×（H）1950mm |
| Machine Weight |
Net Weight：370kg Gross Weight：500kg |
