Application

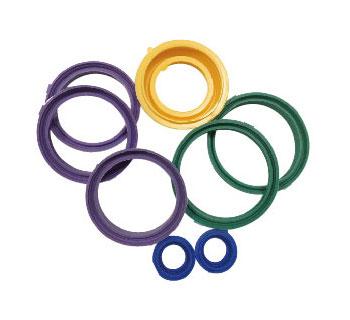

Suitable for the trimming of medium-sized oil seals and PU Packings
Features

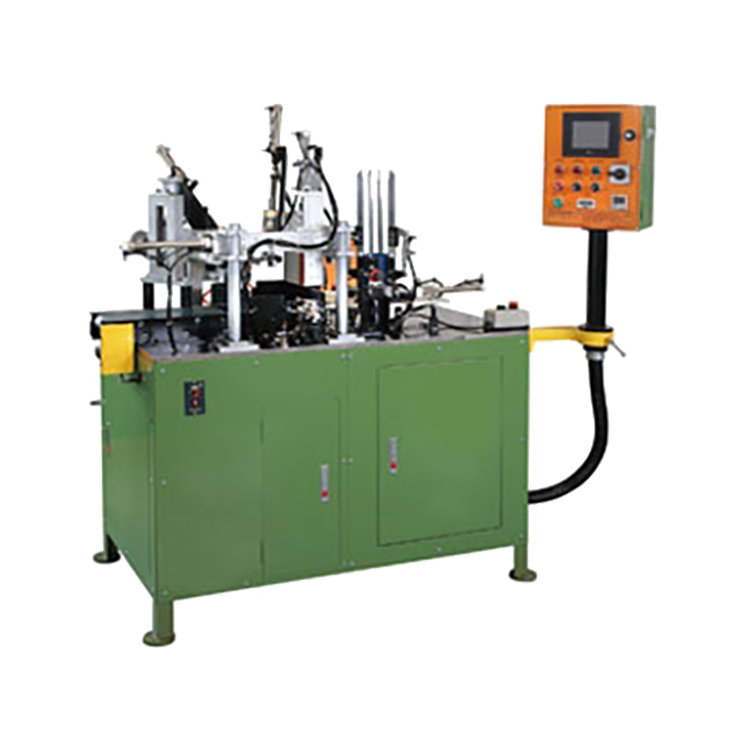

It is special design to trim oil seals with O.D.Ø 50mm~Ø 120mm and PU Packing that vibratory conveyor is unable to work. Equip with auto delivering system and mechanical arm to auto loading and offloading oil seals, then both inner and outer diameter can be trimmed simultaneously.
Operation system: manual stacking → auto feeding → auto loading → auto trimming→ auto offloading working pieces
Equip with 3 sets of knives and pressurized wheel to meet the special requirements of product.
| SPECIFICATION |
|
| Power |
2KW |
| Voltage |
According to the customer’s assignment |
| Control System | PLC, Air Pressure System and Man-Machine Interface Touch Control System |
| Knife Set |
Three Knife Sets |
| Trimming Range |
Oil Seal Max. Outer Diameter Ø50-Ø120mm |
| Working Capacity |
8-12 PCS/min (Adjust based on the product trimming conditions) |
| Machine Size |
（L）1880×（W）1100×（H）1800mm |
| Measurement Ton |
（L）1900×（W）1200×（H）1900mm |
| Machine Weight |
Net Weight：420kg Gross Weight：520kg |
