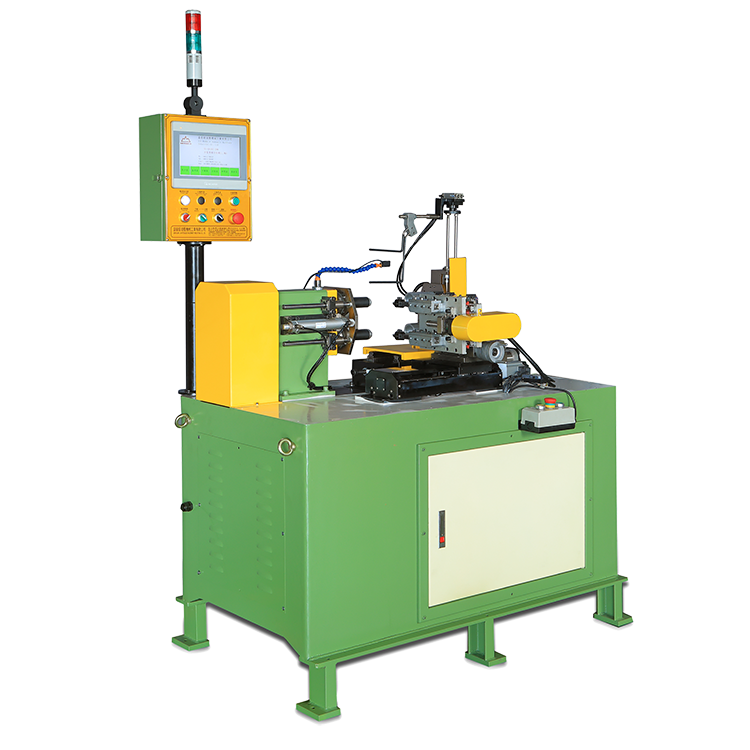

AUTO LOADING SQUARE RING CUTTING MACHINE(Dual-Axis)

Model No: SY-SR107D-S / AUTO LOADING SQUARE RING CUTTING MACHINE (Automatic loading/unloading Type)
https://www.scptmachinery.com/web/image/product.template/89/image_1920?unique=3b50963
Processing Methods and Functions:

Dual-Axis Cutting Shaft(Automatic loading/unloading Type)

    This combination does not exist.
    ApplicationFeatures

    Application

    Suitable use for square ring cutting (after rubber tube shaped)

    Features

    Manual feeding, auto loading and auto offloading increase working efficiency.
    2-cutting shafts with the ability to cut 2 pcs of rubber tubes simultaneously to increase working efficiency and labor cost saving.
    Equip with precise linear motion guide, servo motor and man-machine interface touch control for thickness cutting precisely and quickly .It is easy to operate and adjust.
    SPECIFICATION
    Power
    		 1.5KW
    Voltage
    		 According to the customer’s assignment
    Cutting Shaft
    		Two cutting shafts
    Control System
    		PLC, Air Pressure System and Man-Machine Interface Touch Control System
    Cutting Range(Rubber Tube)
    		 Length: max. 100mm, Outer Diameter : Ø 20~Ø 70mm, Thickness (O.D.-I.D.): 5~ 10mm
    Working Capacity
    		 20-30 PCS/min(each cutting shaft)
