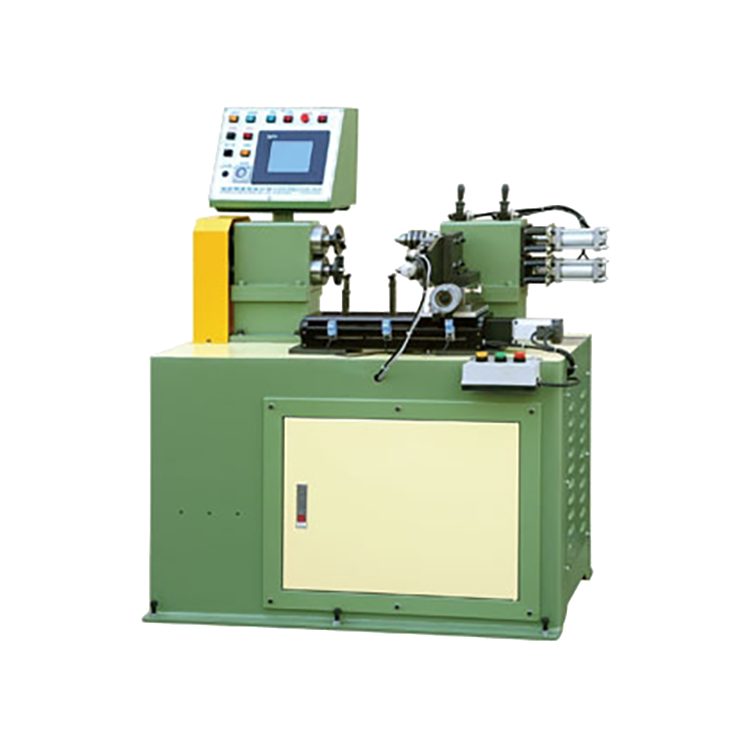

SQUARE RING CUTTING MACHINE(Dual-Axis)

Model No: SY-SR107D / SQUARE RING CUTTING MACHINE (Manual loading/unloading Type)
https://www.scptmachinery.com/web/image/product.template/59/image_1920?unique=f4828c8
Processing Methods and Functions:

Dual-Axis Cutting Shaft(Manual loading/unloading Type)

    This combination does not exist.
    ApplicationFeatures

    Application

    Suitable for square ring cutting (after rubber tube shaped)

    Features

    Equip with precise linear motion guide, servo motor and man-machine interface touch control for thickness cutting precisely and fast. It is easy to operate and adjust.
    After cutting is completed, the cutting knife returns back automatically. One person can control many sets of machine at the same time.
    Double cutting shafts with the ability to cut 2 pcs of rubber tubes for one time to increase working efficiency.
    SPECIFICATION
    Power
    		 1.5KW
    Voltage
    		 According to the customer’s assignment
    Cutting Shaft
    		Two cutting shafts
    Control System
    		PLC, Air Pressure System and Man-Machine Interface Touch Control System
    Cutting Range(Rubber Tube)
    		 Length: 100-250mm, Outer Diameter :Ø 20- Ø 70mm, Thickness(O.D.-I.D.): 5-10mm
    Working Capacity
    		 30-50 PCS/min (for each cutting shaft)
    Optional Accessory (cost required)
    		Safety Fence, Safety Switch and Safety Optical Curtain
    Machine Size
    		 （L）1200×（W）500×（H）1600mm
    Measurement Ton
    		 （L）1300×（W）600×（H）1700mm
    Machine Weight
    		 Net Weight：420kg　　　　Gross Weight：550kg
