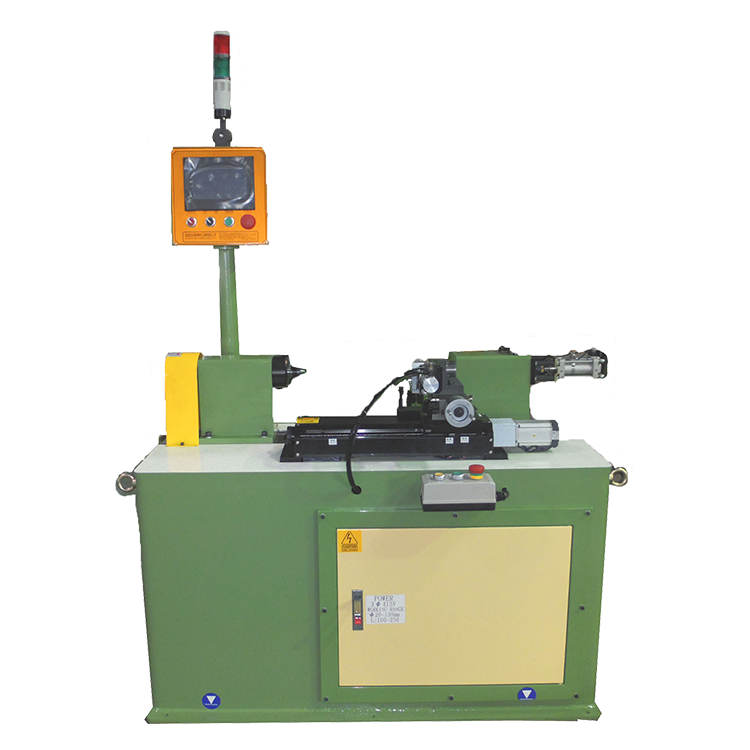

SQUARE RING CUTTING MACHINE(Single-Axis)

Model No: SY-SR107 / SQUARE RING CUTTING MACHINE (Manual loading/unloading Type)
https://www.scptmachinery.com/web/image/product.template/58/image_1920?unique=6807a2c
Processing Methods and Functions:

Single-Axis Cutting Shaft(Manual loading/unloading Type)

    This combination does not exist.
    ApplicationFeatures

    Application

    Suitable for square ring cutting (after rubber tube shaped)

    Features

    Equip with precise linear motion guide, servo motor and man-machine interface touch control for thickness cutting precisely and fast .It is easy to operate and adjust.
    After cutting completed, the cutting knife returns back automatically. One person can control many sets of machine at the same time.
    SPECIFICATION
    Power
    		 1.5KW
    Voltage
    		 According to the customer’s assignment
    Cutting Shaft
    		One cutting shaft
    Control System
    		PLC, Air Pressure System and Man-Machine Interface Touch Control System
    Cutting Range(Rubber Tube)
    		Rubber Tube：Length: 100-250mm, Outer Diameter : Ø 20-Ø 130mm, Thickness(O.D.-I.D.): 5-10mm
    Working Capacity
    		 30-50 PCS/min (Adjust based on the product trimming conditions)
    Optional Accessory (cost required)
    		Safety Fence, Safety Switch and Safety Optical Curtain
    Machine Size
    		 （L）1200×（W）500×（H）1700mm
    Measurement Ton
    		 （L）1300×（W）600×（H）1700mm
    Machine Weight
    		 Net Weight：380kg　　　　Gross Weight：500kg
