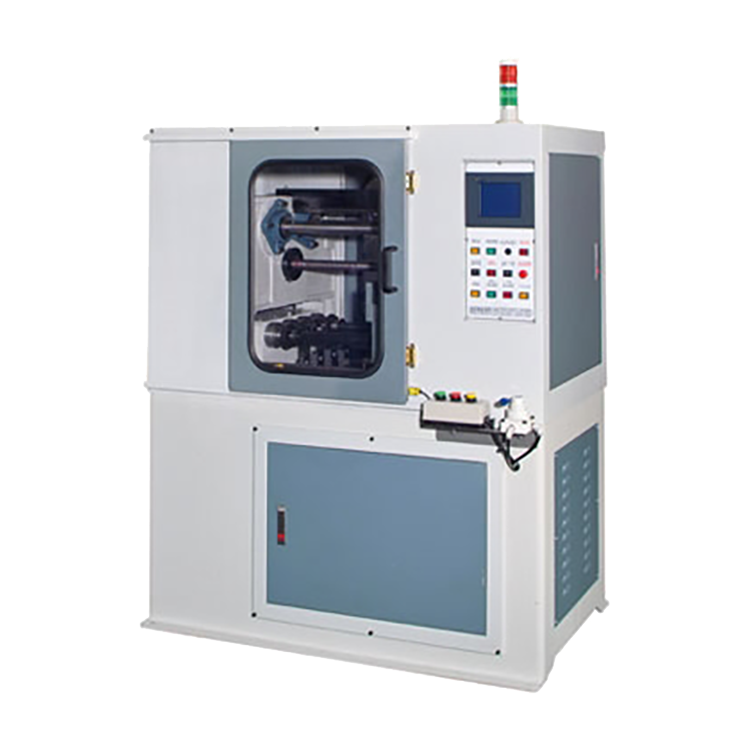

SQUARE RING CUTTING MACHINE(Four-Axis)

Model No: SY-SR107-4D / SQUARE RING CUTTING MACHINE (Manual loading/unloading Type)
https://www.scptmachinery.com/web/image/product.template/60/image_1920?unique=8f6c553
Processing Methods and Functions:

Four-Axis Cutting Shaft(Manual loading/unloading Type)

    This combination does not exist.
    ApplicationFeatures

    Application

    Suitable use for square ring cutting (after rubber tube shaped)

    Features

    Equip with precise linear motion guide, servo motor and man-machine interface touch control for thickness cutting precisely and quickly .It is easy to operate and adjust.
    After cutting completed, all knife return back automatically. One person can control many sets of machine at the same time.
    4-cutting shafts with the ability to cut 4 pcs of rubber tubes simultaneously to increase working efficiency.
    SPECIFICATION
    Power
    		 3.75KW
    Voltage
    		 According to the customer’s assignment
    Cutting Shaft
    		Four cutting shafts
    Control System
    		PLC, Air Pressure System and Man-Machine Interface Touch Control System
    Cutting Range(Rubber Tube)
    		 Length: max. 250mm, Outer Diameter : Ø 20-Ø 70mm, Thickness(O.D.- I.D.) : 5 ~ 10mm
    Working Capacity
    		 25-35 PCS/min (Adjust based on the product trimming conditions)
    Machine Size
    		 （L）1300×（W）900×（H）1700mm
    Measurement Ton
    		 （L）1400×（W）1000×（H）1800mm
    Machine Weight
    		 Net Weight：450kg　　　　Gross Weight：600kg
