Application

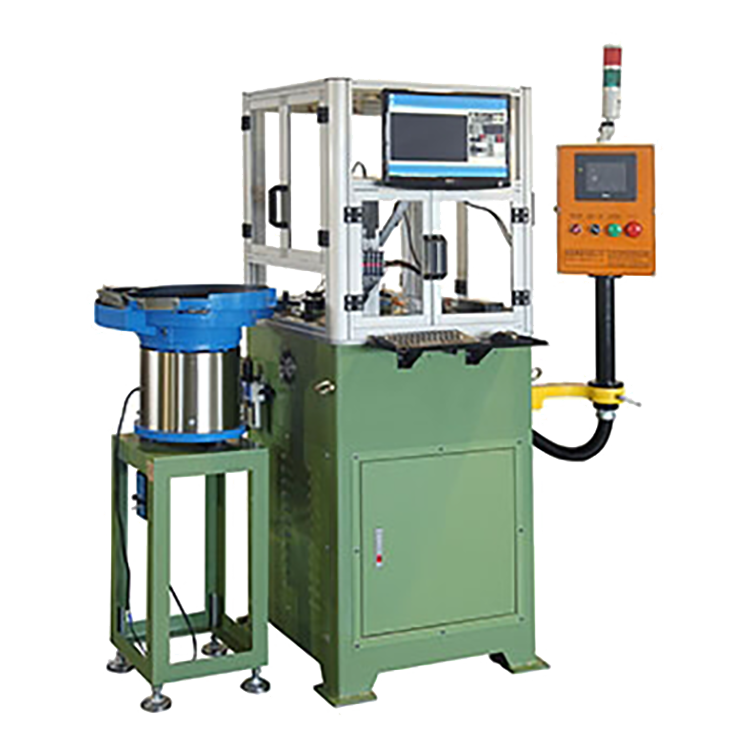

Suitable for oil seal dimension inspection after trimming finished.
Features
Equip with vibratory conveyor to finish full auto inspection trimming dimension and auto separate good product from defect product. The packed quantity is adjustable.
Use IPC machine with CCD Gray-level camera to inspect the trimming size and make sure all good product for customers.
Full auto inspection working line finish inspection efficiently and increase product value.
| SPECIFICATION |
|
| Power |
3KW |
| Voltage |
According to the customer’s assignment |
| Control System | PLC, Air Pressure System and Man-Machine Interface Touch Screen |
| Inspection System | IPC and CCD Gray-level camera |
| Working Range |

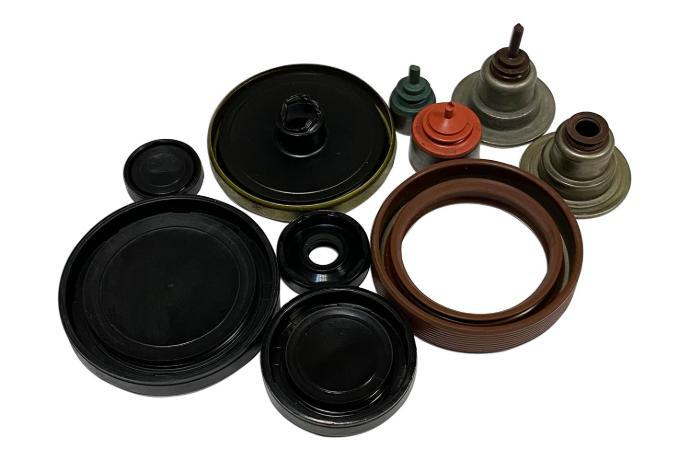

Oil Seals O.D.Ø 10-30mm or Ø 30-50mm (Choose one of the two options; other specifications can be customized as needed.) |
| Working Capacity |
10-15 PCS/min (Adjustable according to product characteristics.) |
| Machine Size |
（L）1200×（W）700×（H）1800mm |
| Measurement Ton |
（L）1700×（W）800×（H）1900mm |
| Machine Weight |
Net Weight：800kg Gross Weight：900kg |
