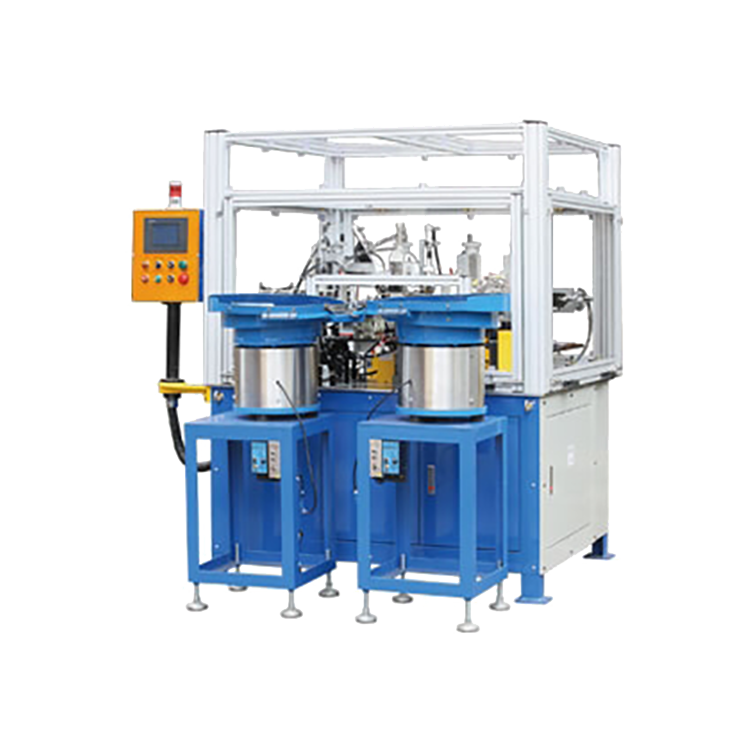

Application
Suitable for the trimming of mass production valve steam seals, cups, UV packings, and other rubber soft material products, etc.
Features
Equip with two auto feeding systems to trim two pieces of product for one time. One operator can operate many sets of machine simultaneously to cost down the labor charge.
Use the rotary platen for 5-stations cycle to auto feed, load, locate, trim, auto offload, and equip with mechanical arm to finish auto trimming cycle to increase the working efficiency.
| SPECIFICATION |
|
| Power |
5KW |
| Voltage |
According to the customer’s assignment |
| Control System | PLC, Air Pressure System and Man-Machine Interface Touch Control System |
| Knife Set |
Four Knife Sets |
| Trimming Angle | 0-60° |
| Trimming Range |
Seal Max. Outer Diameter Ø50mm |
| Working Capacity |
30-40 PCS/min (Adjust based on the product trimming conditions) |
| Optional Accessory (additional cost) | Safety Fence, Safety Switch or Safety Optical Curtain |
| Machine Size |
（L）1500×（W）1500×（H）1850mm |
| Measurement Ton |
（L）2000×（W）1700×（H）1950mm |
| Machine Weight |
Net Weight：1200kg Gross Weight：1400kg |
