Application

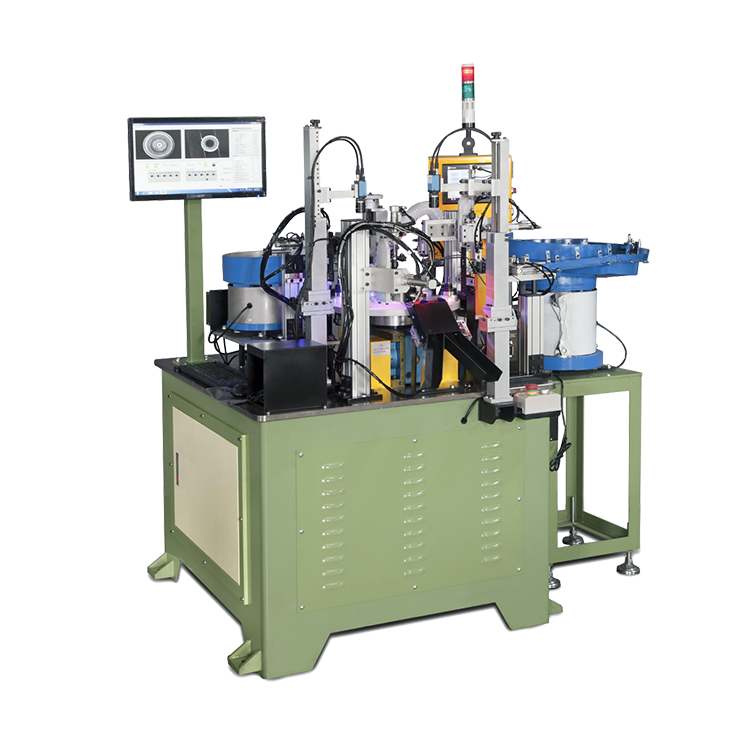

Suitable for various types of valve stem seals trimming, springs loading and dimension inspecting.
Features
Use rotary platen for 6-stations cycle to auto feed,load valve steam seals, locate, trim, springs load, inspect dimension and rubber covered and then auto offloading working pieces.
Equip with vibratory conveyor and mechanical arm to auto finish all working process . The auto working cycle can separate good products from defect products to save time for management.
| SPECIFICATION |
|
| Power |
3.5KW |
| Voltage |
According to the customer’s assignment |
| Control System | PLC and Air Pressure System |
| Knife Set |
Two Knife Sets |
| Trimming Angle | 0-60° |
| Working Capacity |
16-20 PCS/min (Adjust based on the product trimming conditions) |
| Inspection System | Yes |
| Accessory by choice (cost required) | Safety Fence, Safety Switch or Safety Optical Curtain |
| Machine Size |
（L）750×（W）1700×（H）750mm |
| Measurement Ton |
（L）1100×（W）1800×（H）1300mm |
| Machine Weight |
Net Weight：420kg Gross Weight：550kg |
