Application

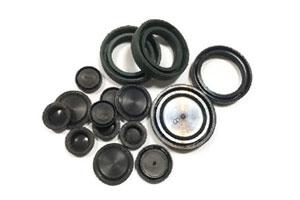

Special use for A Type oil seals trimming.
Features
It is unnecessary to make mold for working pieces to cost down the mold charge.
Manual stacking, auto feeding, auto loading and auto offloading, one operator can operate 2-3 sets of machine simultaneously.
Equip with one knife set to hold two knives to trim the inner and outer diameter at one time to save working time.
Mechanical control, low rate of breakdown, simple for maintenance with high economic profit.
| SPECIFICATION |
|
| Power |
2KW |
| Voltage |
According to the customer’s assignment |
| Control System | Cam Control and Air Pressure System |
| Knife Set |
One Knife Set |
| Trimming Range |
Oil Seals Outer Diameter Ø16 - Ø90 mm |
| Working Capacity |
15-21 PCS/min (Adjust based on the product trimming conditions) |
| Machine Size |
（L）680×（W）680×（H）780mm |
| Measurement Ton |
（L）800×（W）800×（H）900mm |
| Machine Weight |
Net Weight：180kg Gross Weight：250kg |
