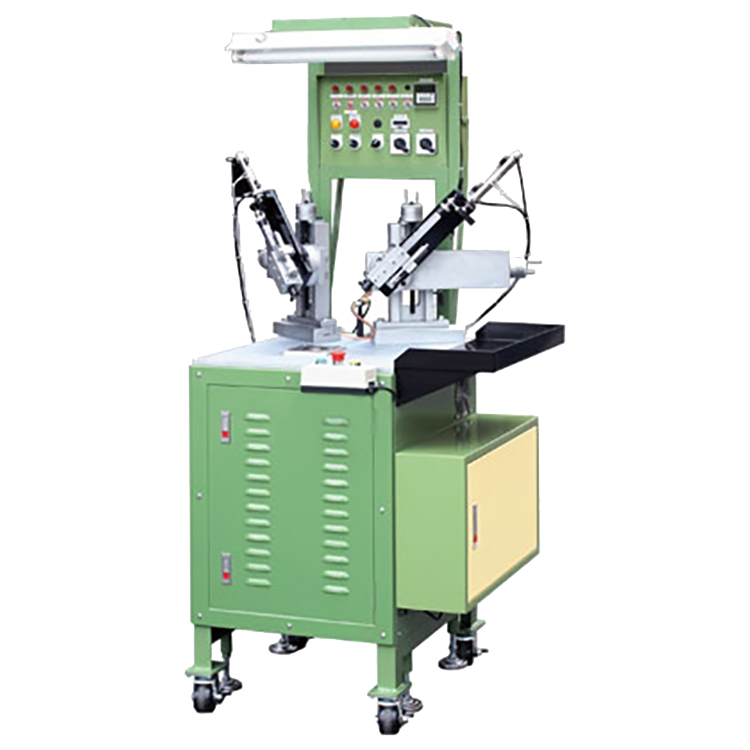

Application

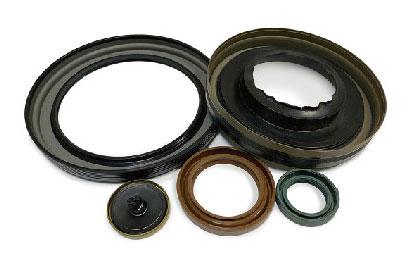

Suitable for A and B type oil seals with large-sized outer diameter and general oil seals trimming.
Features
Use #45 collet chuck to make molds. Quick and easy to change mold and knife.
The Cutting process of inner and outer diameter trimming is adjustable to meet products’ requirement.
| SPECIFICATION |
|
| Power |
2KW |
| Voltage |
According to the customer’s assignment |
| Knife Set |
Two knife sets |
| Trimming Range |
Oil Seals Outer DiameterØ 80~300mm |
| Working Capacity |
15-20 PCS/min (Adjust based on the product trimming conditions) |
| Control System |
PLC and air pressure system |
| Machine Size |
（L）880×（W）680×（H）1850mm |
| Measurement Ton |
（L）880×（W）780×（H）1950mm |
| Machine Weight |
Net Weight：320kg Gross Weight：420kg |
