Application

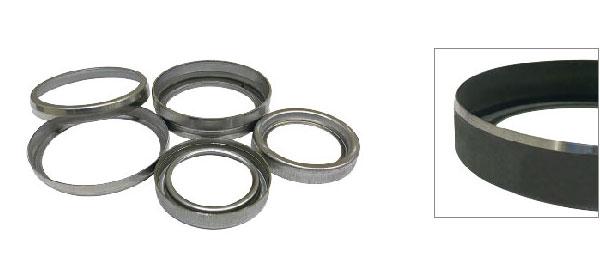

Suitable for beveling and cutting oil seal iron cases and valve steam seal iron cases.
Features
The end cutting knife and the bevel angle knife can work simultaneously or individually.
Working process: Manual feeding ->start->auto clamping ->rotation ->beveling and cutting ->finish->stop ->offloading products.
| SPECIFICATION |
|
| Power |
2KW |
| Voltage |
According to the customer’s assignment |
| Control System | Electrical System and Air Pressure System |
| Knife Set | End Knife Set x 1 (for length cutting) Bevel Angle Knife Set x 1 (for bur) |
| Working Range |
Outer DiameterØ18~Ø110mm |
| Working Capacity |
15-25 PCS/min (Adjust based on the product trimming conditions) |
| Machine Size |
（L）900×（W）680×（H）1400mm |
| Measurement Ton |
（L）1100×（W）900×（H）1500mm |
| Machine Weight |
Net Weight：320kg Gross Weight：420kg |
