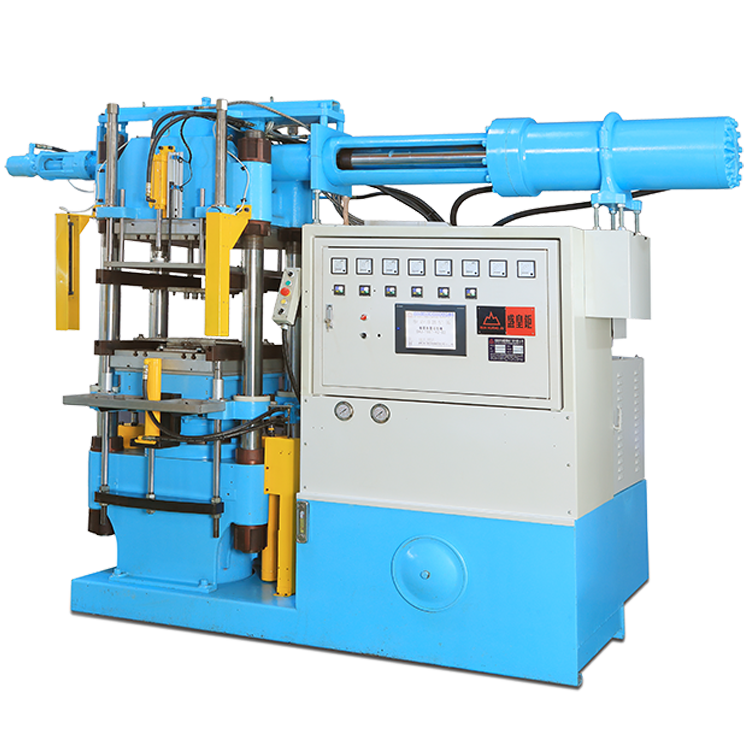

Rubber Injection Molding Machine

Model No: SHJ-250T-IN2 / Rubber Injection Molding Machine
https://www.scptmachinery.com/web/image/product.template/117/image_1920?unique=35f4e5f
Processing Methods and Functions:

Equipped with a high-torque hydraulic motor, allowing for fast feeding of high-hardness rubber materials

    This combination does not exist.

    Rubber Injection Molding Machine

    Machine Features

    Machine Features

    Suitable for complex molds and diverse product molding structures.
    Equipped with a high-torque hydraulic motor, allowing for fast feeding of high-hardness rubber materials, making it compatible with various rubber compounds.
    SPECIFICATION / Model SHJ-150T-IN2
    		SHJ-250T-IN2
    Clamping Force
    		 150TON
    		250TON
    Maximum Operating Pressure
    		210kg/cm²
    		210kg/cm²
    Piston Diameter
    		Ø330mm
    		Ø400mm
    Electric Heating Capacity
    		19kw
    		22kw
    Heating Plate Dimensions
    		560x520mm
    		560x560mm
    Main Machine Horsepower
    		15HP
    		20HP
    (Note: Specifications beyond this can be customized. Our company reserves the right to make design changes.)
